Nexus 7000 Hardware Lab

We will complete this Nexus 7000 Hardware lab in various tasks along with its description.

Task 1: Connect to the Nexus 7000 series and determine the system software version that is currently
running on the Cisco Nexus.

DCLessons-N7k-1# sh ver
Cisco Nexus Operating System (NX-OS) Software
TAC support: http://www.cisco.com/tac
Documents: http://www.cisco.com/en/US/products/ps9372/tsd_products_support_series_home.html
Copyright (c) 2002-2016, Cisco Systems, Inc. All rights reserved.
The copyrights to certain works contained in this software are
owned by other third parties and used and distributed under
license. Certain components of this software are licensed under
the GNU General Public License (GPL) version 2.0 or the GNU
Lesser General Public License (LGPL) Version 2.1. A copy of each
such license is available at
http://www.opensource.org/licenses/gpl-2.0.php and
http://www.opensource.org/licenses/lgpl-2.1.php
!
Software
BIOS: version 2.12.0
kickstart: version 6.2(16)
system: version 6.2(16)
BIOS compile time: 05/29/2013
kickstart image file is: bootflash:///n7000-s2-kickstart.6.2.16.bin
kickstart compile time: 1/27/2016 9:00:00 [04/05/2016 21:13:37]
system image file is: bootflash:///n7000-s2-dk9.6.2.16.bin
system compile time: 1/27/2016 9:00:00 [04/05/2016 22:16:06]
!
Hardware
cisco Nexus7000 C7010 (10 Slot) Chassis ('Supervisor Module-2')
Intel(R) Xeon(R) CPU with 32745060 kB of memory
Processor Board ID JAF1843ADEM
Device name: DCLessons-N7k-1
bootflash: 2007040 kB
slot0: 0 kB (expansion flash)
!
Kernel uptime is 631 day(s), 16 hour(s), 39 minute(s), 21 second(s)
!
Last reset
Reason: Unknown
System version: 6.2(12)
Service:
!
plugin
Core Plugin, Ethernet Plugin

Nexus 7010 Slot Numbering Machines

Task 2: Connect to the Nexus 7000 series and determine the Cisco Nexus 7010 hardware components

DCLessons-N7k-1# sh inv
NAME: 'Chassis', DESCR: 'Nexus7000 C7010 (10 Slot) Chassis '
PID: N7K-C7010 , VID: V02 , SN: JAF1540BLQQ
-
NAME: 'Slot 1', DESCR: '10/100/1000 Mbps Ethernet XL Module'
PID: N7K-M148GT-11L , VID: V02 , SN: JAF1548AANQ
-
NAME: 'Slot 2', DESCR: '10/100/1000 Mbps Ethernet XL Module'
PID: N7K-M148GT-11L , VID: V02 , SN: JAF1548AAQN
-
NAME: 'Slot 3', DESCR: '10/100/1000 Mbps Ethernet XL Module'
PID: N7K-M148GT-11L , VID: V02 , SN: JAF1548AAPM
-
NAME: 'Slot 5', DESCR: 'Supervisor Module-2'
PID: N7K-SUP2E , VID: V03 , SN: JAE19250CXV
-
NAME: 'Slot 6', DESCR: 'Supervisor Module-2'
PID: N7K-SUP2E , VID: V03 , SN: JAF1843ADEM
-
NAME: 'Slot 9', DESCR: '10 Gbps Ethernet XL Module'
PID: N7K-M132XP-12L , VID: V06 , SN: JAF1914ABAG
-
NAME: 'Slot 10', DESCR: '10 Gbps Ethernet XL Module'
PID: N7K-M132XP-12L , VID: V02 , SN: JAF1551ABKF
-
NAME: 'Slot 11', DESCR: 'Fabric card module'
PID: N7K-C7010-FAB-1 , VID: V04 , SN: JAF1546BMJT
-
NAME: 'Slot 12', DESCR: 'Fabric card module'
PID: N7K-C7010-FAB-1 , VID: V04 , SN: JAF1546BMHN
-
NAME: 'Slot 13', DESCR: 'Fabric card module'
PID: N7K-C7010-FAB-1 , VID: V04 , SN: JAF1546BMJF
-
NAME: 'Slot 33', DESCR: 'Nexus7000 C7010 (10 Slot) Chassis Power Supply'
PID: N7K-AC-6.0KW , VID: V02 , SN: DTM154100KX
-
NAME: 'Slot 34', DESCR: 'Nexus7000 C7010 (10 Slot) Chassis Power Supply'
PID: N7K-AC-6.0KW , VID: V02 , SN: DTM154100LH
-
NAME: 'Slot 35', DESCR: 'Nexus7000 C7010 (10 Slot) Chassis Power Supply'
PID: N7K-AC-6.0KW , VID: V02 , SN: DTM154100RR
-
NAME: 'Slot 36', DESCR: 'Nexus7000 C7010 (10 Slot) Chassis Fan Module'
PID: N7K-C7010-FAN-S , VID: V01 , SN: FOX1537XA0X
-
NAME: 'Slot 37', DESCR: 'Nexus7000 C7010 (10 Slot) Chassis Fan Module'
PID: N7K-C7010-FAN-S , VID: V01 , SN: FOX1537XABQ
-
NAME: 'Slot 38', DESCR: 'Nexus7000 C7010 (10 Slot) Chassis Fan Module'
PID: N7K-C7010-FAN-F , VID: V02 , SN: FOX1538XAPP
-
NAME: 'Slot 39', DESCR: 'Nexus7000 C7010 (10 Slot) Chassis Fan Module'
PID: N7K-C7010-FAN-F , VID: V02 , SN: FOX1538XANT

This Command will show you how many modules, what types of modules, Supervisor, and other
Hardware components are installed in this Nexus Box. It display information about the field
replaceable units (FRUs), including product IDs, serial numbers, and version IDs by entering the show
inventory command.
The Above output can also be found by giving the Show Module Command on the Nexus Box. This
Command provides the Module type / Module number Installed on the particular Slot and also provides
the Status and Physical address.

DCLessons-N7k-1# show module
Mod Ports Module-Type Model Status
--- ----- ----------------------------------- ------------------ ----------
1 48 10/100/1000 Mbps Ethernet XL Module N7K-M148GT-11L ok
2 48 10/100/1000 Mbps Ethernet XL Module N7K-M148GT-11L ok
3 48 10/100/1000 Mbps Ethernet XL Module N7K-M148GT-11L ok
5 0 Supervisor Module-2 N7K-SUP2E ha-standby
6 0 Supervisor Module-2 N7K-SUP2E active *
9 32 10 Gbps Ethernet XL Module N7K-M132XP-12L ok
10 32 10 Gbps Ethernet XL Module N7K-M132XP-12L ok
!
Mod Sw Hw
--- -------------- ------
1 6.2(16) 1.2
2 6.2(16) 1.2
3 6.2(16) 1.2
5 6.2(16) 6.1
6 6.2(16) 6.1
9 6.2(16) 3.4
10 6.2(16) 1.3
!
Mod MAC-Address(es) Serial-Num
--- -------------------------------------- ----------
1 64-9e-f3-e0-b5-fc to 64-9e-f3-e0-b6-2f JAF1548AANQ
2 28-94-0f-52-c7-60 to 28-94-0f-52-c7-93 JAF1548AAQN
3 28-94-0f-8c-66-18 to 28-94-0f-8c-66-4b JAF1548AAPM
5 84-b5-17-f4-25-68 to 84-b5-17-f4-25-7a JAE19250CXV
6 50-87-89-4a-71-a2 to 50-87-89-4a-71-b4 JAF1843ADEM
9 84-b8-02-17-71-04 to 84-b8-02-17-71-27 JAF1914ABAG
10 c4-64-13-7d-bb-68 to c4-64-13-7d-bb-8b JAF1551ABKF
!
Mod Online Diag Status
--- ------------------------------------------------
1 Pass
2 Pass
3 Pass
5 Pass
6 Pass
9 Fail
10 Pass
!
Xbar Ports Module-Type Model Status
--- ----- ----------------------- ------------------ ----------
1 0 Fabric Module 1 N7K-C7010-FAB-1 ok
2 0 Fabric Module 1 N7K-C7010-FAB-1 ok
3 0 Fabric Module 1 N7K-C7010-FAB-1 ok
!
Xbar Sw Hw
--- -------------- ------
1 NA 1.2
2 NA 1.2
3 NA 1.2
!
Xbar MAC-Address(es) Serial-Num
--- -------------------------------------- ----------
1 NA JAF1546BMJT
2 NA JAF1546BMHN
3 NA JAF1546BMJF
!
* this terminal session

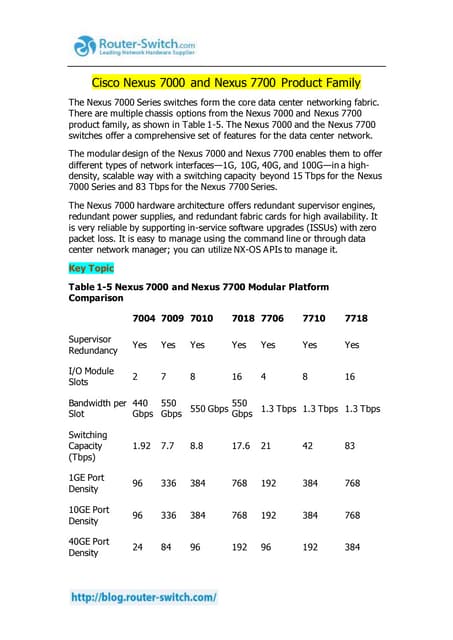

Cisco Nexus 7000 Series switches support up to five fabric modules in the chassis. Each chassis has its
own type of fabric module as follows:

Cisco Nexus 7009 chassis uses the Fabric 2 (N7K-C7009-FAB-2) modules.
Cisco Nexus 7010 chassis uses the Fabric 1 (N7K-C7010-FAB-1) or Fabric 2 (N7K-C7010-FAB-2)
Cisco Nexus 7018 chassis uses the Fabric 1 (N7K-C7018-FAB-1) or Fabric 2 (N7K-C7018-FAB-2)
The Cisco Nexus 7004 switch does not include fabric modules.

Nexus 7010 Slot Numbering Software

Nexus 7010 Slot Numbering Tool
